SG Series
SG series is a small device server that can use serial port anytime and anywhere through network. The SG Series connected via LAN port supports serial communication speed up to 921.6Kbps and supports RS-232 or RS422 / 485 serial communication standard.
· Network Diagram
· Product Features
Supports serial speed up to 921.6Kbps
Industrial Operating Temperature Support (-40 to 85 ° C)
1 to 16 ports of RS-232 or RS-422/485 serial communication standard
10 / 100Mbps Ethernet port x 1 or 2 port
Provides COM port redirector and various utilities
Support management / monitoring function via Web, Telnet, SSH, SNMP, Portview ™
Built-in ± 15 KV ESD protection
Acquired KC, CE and FCC certification
Din rail mounting possible
·Specification
| Classification | SG-1010 | SG-1020 | SG-1040 | SG-1080 | SG-1160/ALL |
| CPU | ARM926EJ-S(210MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) |
| Flash | 4MB | 8MB | 8MB | 8MB | 8MB |
| RAM | 32MB | 32MB | 32MB | 32MB | 32MB |
| LAN | ARM926EJ-S(210MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) | ARM926EJ-S(400MHz) |
| LED | PWR(Power), LAN, RDY(Ready) (* Combo Model RS422, RS485 LED) | LED | PWR(Power), WAN, LAN, RDY(Ready) | PWR(Power), WAN, LAN, RDY(Ready) | PWR(Power), WAN, LAN, RDY(Ready) |
| Number of communication ports | 1ea, RJ-45 | 2ea, RJ-45 | 4ea, RJ-45 | 8ea, RJ-45 | 16ea, RJ-45 |

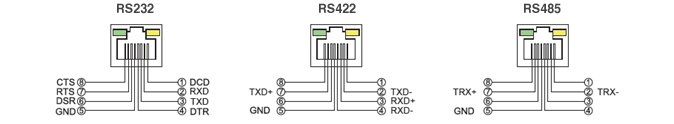

| Interface | RS232 Model : RS232 (RJ-45) Combo Model : RS422 / 485 (RJ-45) | ||||
| Latest communication speed | Up to 921.6 Kbps | ||||
| Protocol | TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL | TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL | TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL | TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL | TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL |
| Management | PortView™, Web, SNMP | PortView™, Web, SNMP | Web, PortView™, SNMP, SGConfig | Web, PortView™, SNMP, SGConfig | Web, PortView™, SNMP, SGConfig |
| Power | DC 9 ~ 30V adapter available. Terminal block power input possible. Power consumption up to 2W | DC 12 ~ 48V adapter available. 100-220V AC power available. Power consumption up to 4W | |||
| Environmental condition | operation temperature : : -40 ~ 85 ℃ Storage temperature : -40 ~ 85 | ||||
| Size | 66.8(W) x 87.1(L) x 24.5(H) mm | 71.9(W) x 107.5(L) x 25.2(H) mm | 240(W) x 150.5(L) x 50(H) mm | 240(W) x 150.5(L) x 50(H) mm | 430(W) x 180.8(L) x 44(H) mm |
| Weight | 125g | 130g | 1175g | 1215g | 2470g |
